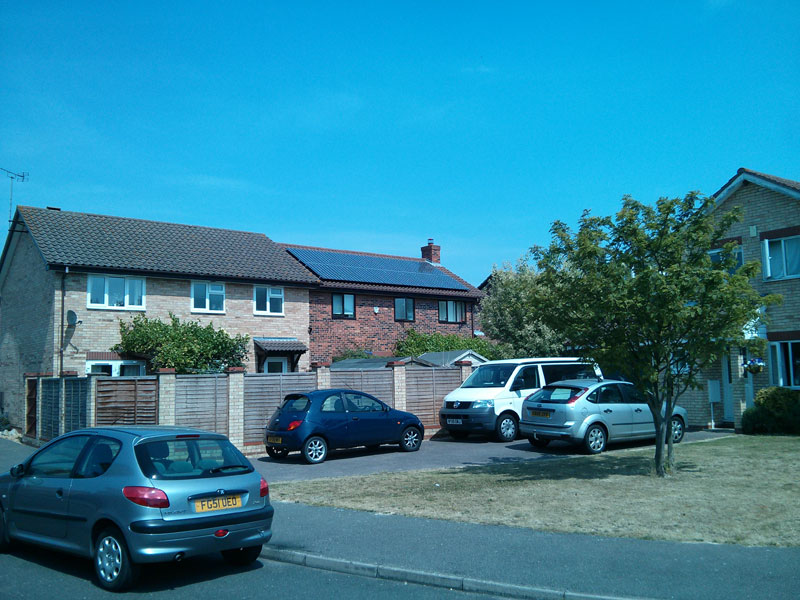

How do solar panels work? Domestic solar panel installation in Oxford‘How do solar panels work?’ is a question we are often asked at Exeo Energy. Below we explain the purpose and operation of all of the main components of a grid-connected solar panel system and then go on to describe how the solar panel system operates. We also discuss optional components that are often installed with solar pv systems like monitoring systems, solar batteries and solar immersion controllers.

This article is based on grid-connected solar pv systems installed in the UK. If you would like to read a detailed article about another aspect of how solar panels work, for example an explanation of the physics of how solar photovoltaic cells convert light energy into electrical energy or how off-grid solar panel systems work then please come back soon as we are working on these articles.

How Solar Panel Systems Work

First we will introduce you to a system layout containing all of the major components.

The Solar Panels

So firstly – and most importantly – we have the solar panels. These solar panels are made up of squares of silicon called solar cells. These solar cells are encased and connected together to create a solar photovoltaic (PV) panel. These panels are normally surrounded by a sturdy aluminium frame which is used to fix the solar panels onto a frame system mounted to a roof or otherwise. The solar panels are mounted in order to receive as much solar energy as possible - normally on a roof. When solar energy hits the solar cells within the solar panel the photos of light energy cause a flow of electric charge through the material which causes a current flow from the cell and a small voltage across the solar cell. When these cells are all connected together inside a panel this results in a significant electrical power output from the panel. The panels in turn are normally connected together in a string or multiple strings which again result in higher power outputs. The solar panels output power in Direct Current (DC) electricity.

The solar panel mounting kit

Solar panels are normally mounted onto a roof or ground-mounted frame. There are lots of different types of frame, each designed for different types or roof, different aesthetics and roof coverings. These are almost always set kits from manufacturers and include all necessary components required. Typical types include: on-roof systems which sit above the existing roof covering and are the most common type used for domestic and commercial properties in the UK; in-roof systems replace the roof covering (eg slate or tile) and sit directly on the roofs battons forming part of the watertight covering; flat-roof systems are designed specifically for flat roofs; ground-mount systems are (surprisingly!) designed for ground based installations.

The solar panel inverter

The solar inverter is a key part of the solar panel installation - it is the heart of the system! Its job is to take the Direct Current (DC) electricity from the solar panels and convert it into Alternating Current (AC) electricity that can then be used by electrical appliances within the building and/or exported to the national grid for use by neighbouring buildings. Inverters are often installed in lofts or sometimes garages or utility rooms. There are a few different types of inverter including string inverters, micro-inverters and DC optimising inverters. Historically most inverters installed have been string inverters, these are realiable and effective but if a system is subject to shading performance can drop significantly. Micro-inverters are small inverters, about the size of a book, which sits on the back of a solar panel on the roof. These minimise the effect of any shading on a solar panel array. DC optimising inverters, like Solar Edge, perform in a similar way to micro-inverters in that they optimise the performance of individual solar panels thus reducing the negative effects of shading, module missmatch or different rates of degredation between panels.

The generation meter

The generation meter is also very important – it is the official record of how much energy the solar panels have generated. Every quarter when you submit your readings to your electricity supplier you will take the reading from this device. You do not take the reading from the inverter or from any high-tech monitoring system but from this, the generation meter. Whereas inverters can be installed out of the way, according to regulations generation meters need to be installed in an accessable place where it can be read easily. Normally this is next to the consumer unit (fuse board) and will often be labelled as the generation meter. You should see that during the day, as the sun shines the readings will go up and at night when it is dark it will stop.

Solar Panel Monitoring System

Many solar inverters now come internet enabled, also there are also reasonably priced and reliable third party products that measure energy generation from the system. This allow easy visualisation of your solar panel system performance as well as offering alerts if the system is not performing correctly. These do help to gain a better understanding of your energy generation and also allow long term data analysis of system performance.

Solar Panel Battery System

Solar batteries like the Tesla Powerwall are now available for storing excess energy during the day for use in the evening.

Solar Panel Immersion Controllers

Solar Panel Immersion Controllers act in a similar way to a solar battery. Excess electrical energy from the solar panels is used to heat up an immersion element within a hot water cylinder and helps provide domestic hot water. This can contrubute a significant ammount of hot water, especially in the summer months and can therefore reduce energy bills significantly.

Solar Panel System Operation

So what is happening overall when the system is in operation?

  1. Solar energy hits the photovoltaic cells within the panel and this creates an electrical charge
  2. The photovoltaic cells are connected together within the solar panel, together creating a significant ammount of electrical power - in ideal conditions this is normally up to around 250-300 Watts of electrical solar power per panel
  3. The solar panels themselves are connected in long strings of panels producing a significantly ammount of electrical power. This electrical power created by the cells and panels is Direct Current (DC) electricity.
  4. This DC electricity reaches the inverter where it is converter from DC electricity into AC electricity that can be used by electrical equiptment in the property or exported to the national grid.
  5. AC electricity is generated by the inverter. If you are consuming electricity in the property for example, from a fridge, then the energy from the inverter will automatically provide the solar electricity to this fridge thus preventing you from needing to buy electricity from the national grid.
  6. If you generate more power than you are using in the property then the excess will be exported to the national grid and be used by neighbouring properties.
  7. If you are using more power then you are generating from the solar panels (almost always the case at night) then you will have to purchase the additional power from your electricity supplier.
  8. Under the majority of agreements you get paid for all of the energy you generate through the feed-in tariffs. Whether you self-consume all of the solar electricity or whether you export all of the electricty to the grid, you will get paid the same through the tariffs.
  9. If you are self-consuming the energy then you are preventing the need for purchasing power from the grid. The more energy you can self-consume, that you would have had to buy from the grid, the more beneficial the solar panels will be to you.
